| Product | Hot rolled steel I beam |
| Standard | GB/JIS//EN |
| Grade | Q235,Q345,SS400,SS540,S235JR |
| Length | 6-12m |
| Packing | Standard export packing or as you required |
| Payment term | T/T, L/C |
| Application | construction and buildings |

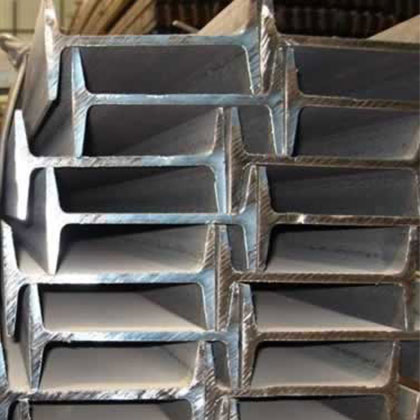

STEEL I BEAM
| Size | H(mm) | Tolerance (mm) |
B(mm) | Tolerance (mm) |
Thickness (mm) |
Tolerance (mm) |
Weight (kg/m) |
| 8# | 80 | ±2.0 | 50 | ±2.0 | 4.5 | ±0.5 | 7.520 |
| 10# | 100 | ±2.0 | 68 | ±2.0 | 4.5 | ±0.5 | 11.261 |
| 12# | 120 | ±2.0 | 74 | ±2.0 | 5.0 | ±0.5 | 13.987 |
| 14# | 140 | ±2.0 | 80 | ±2.0 | 5.5 | ±0.5 | 16.890 |
| 16# | 160 | ±2.0 | 88 | ±2.5 | 6.0 | ±0.5 | 20.513 |
| 18# | 180 | ±2.0 | 94 | ±2.5 | 6.5 | ±0.5 | 24.143 |
| 20A | 200 | ±3.0 | 100 | ±3.0 | 7.0 | ±0.7 | 27.929 |
| 20B | 200 | ±3.0 | 102 | ±3.0 | 9.0 | ±0.7 | 31.069 |
| 22A | 220 | ±3.0 | 110 | ±3.0 | 7.5 | ±0.7 | 33.070 |
| 22B | 220 | ±3.0 | 112 | ±3.0 | 9.5 | ±0.7 | 36.524 |
| 25A | 250 | ±3.0 | 116 | ±3.0 | 8.0 | ±0.7 | 38.050 |
| 25B | 250 | ±3.0 | 118 | ±3.0 | 10.0 | ±0.7 | 42.030 |
| 28A | 280 | ±3.0 | 122 | ±3.0 | 8.5 | ±0.7 | 43.492 |
| 28B | 280 | ±3.0 | 124 | ±3.0 | 10.5 | ±0.7 | 47.888 |
| 30A | 300 | ±3.0 | 126 | ±3.0 | 9.0 | ±0.7 | 48.084 |
| 30B | 300 | ±3.0 | 128 | ±3.0 | 11 | ±0.7 | 52.794 |
IPE BEAMS
| Size | Depth xFlange width (mm) |
Web Thickenss (mm) |
Flange Thickness (mm) |
Weight (kg/m) |
| IPE100 | 100×55 | 4.1 | 5.7 | 8.1 |
| IPE120 | 120×64 | 4.4 | 6.3 | 10.4 |
| IPE140 | 140×73 | 4.7 | 6.9 | 12.9 |
| IPE160 | 160×82 | 5.0 | 7.4 | 15.8 |
| IPE180 | 180×91 | 5.5 | 8.0 | 18.8 |
| IPE200 | 200×100 | 5.6 | 8.5 | 22.4 |
| IPE220 | 220×110 | 5.9 | 9.2 | 36.2 |
| IPE240 | 240×120 | 6.2 | 9.8 | 30.7 |
| IPE270 | 270×135 | 6.6 | 10.2 | 36.1 |
IPE AA BEAMS
| Size | Depth xFlange width (mm) |
Web Thickenss (mm) |
Flange Thickness (mm) |
Weight (kg/m) |
| IPEAA80 | 80×46 | 3.2 | 4.2 | 4.95 |
| IPEAA100 | 100×55 | 3.6 | 4.5 | 6.72 |
| IPEAA120 | 120×64 | 3.6 | 4.8 | 8.36 |
| IPEAA140 | 140×73 | 3.8 | 5.2 | 10.05 |
| IPEAA160 | 160×82 | 4.0 | 5.6 | 12.31 |
Our Services:
1.High quality and service
2.Rich experience in doing business with foreign customers
3.Fast Delivery
4.The most comprehensive standards and materials for your choice.
