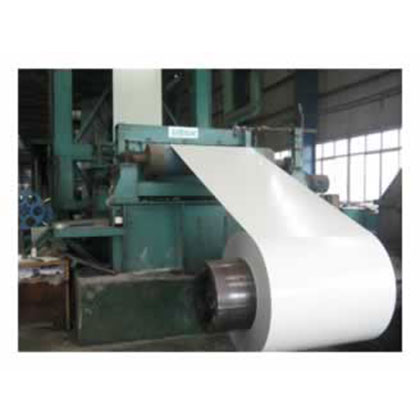

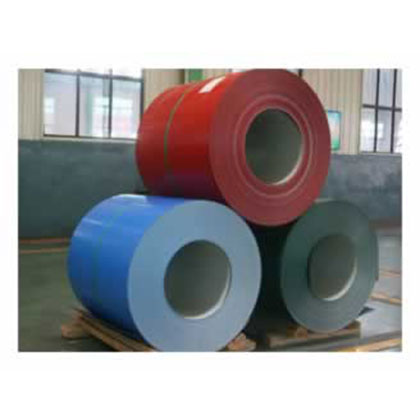

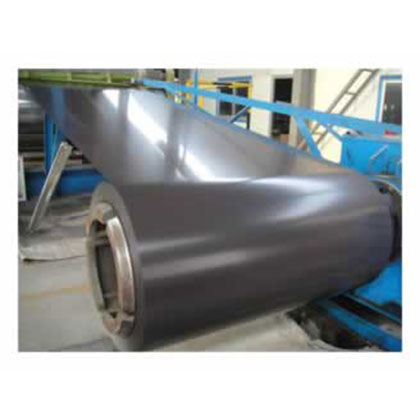

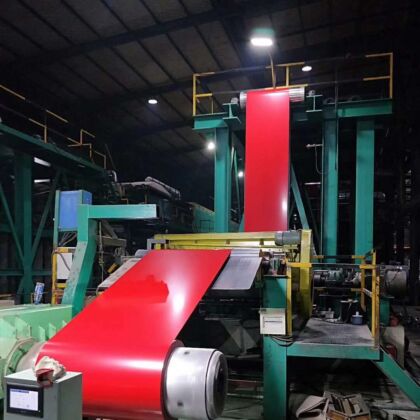

Color coated galvanized steel coil(coated color steel coil) GI:
1) AVAILABLE DESIGNATION
| Quality | Q/BQB 440-2003 | JIS G3312-1994 | EN 10326-2004 | ASTM A653-02a |
| EN 10327-2004 | (BASE PLATE) | |||
| (BASE PLATE) | ||||
| Commercial Steel | TDC51D | CGCC | DX51D+Z/AZ | CS Type A/B/C |
| Forming Steel | (TSt01,TSt02,TSt03) | CGCD1 | FS Type A, Type B | |
| Drawing | TDC52D /TDC53D | – | DX52D+Z/AZ | DDS TYPE A/C |
| Steel | DX53D+Z/AZ | |||
| Structural | TS280GD(TStE28) | CGC400 | S280D+Z/AZ | SS275 |
| Steel | TS350GD(TStE34) | CGC440 | S350D+Z/AZ | SS340 Class1 |
2) OUR SPECIFICATION
Available Size:
| Thickness | Width | Length of plate | Inner diameter of coil |
| 0.2-1.2mm | 800/914/1000/1200/1219/1250mm or as per client requirment | 1000-6000mm | 508mm/610mm |
Coated Mass:
| Base plate | Available Coated Mass(g/m^2) |
| Galvanized Steel | 80, 100, 120, 160, 180 |
| Galvalume Steel | 50, 70, 150 |
Available Painting:
| Category of Painting | Item | Code | |
| Polyester | PE | ||
| High-durability polyester | HDP | ||
| Silicon modified polyesters | SMP | ||
| Polyvinylidene fluoride | PVDF | ||
| Easy-Cleaning | — | ||
| Painting Thickness | Top side: 20+5microns; | ||
| Bottom side: 5~7microns. | |||
| Color System | Produce according to RAL Color System or as per buyer’s color sample. | ||
| Painting structure | Top surface | Bottom surface | |
| Primer coating | No coating | 1/0 | |
| Primer coating | Primer coating | 1/1 | |
| Primer coating + Finish coating | No coating | 2/0 | |
| Primer coating + Finish coating | Primer coating or single back coating | 2/1 | |
| Primer coating + Finish coating | Primer coating + Finish back coating | 2/2 | |
Our Services:
1.High quality and service
2.Rich experience in doing business with foreign customers
3.Fast Delivery
4.The most comprehensive standards and materials for your choice.
